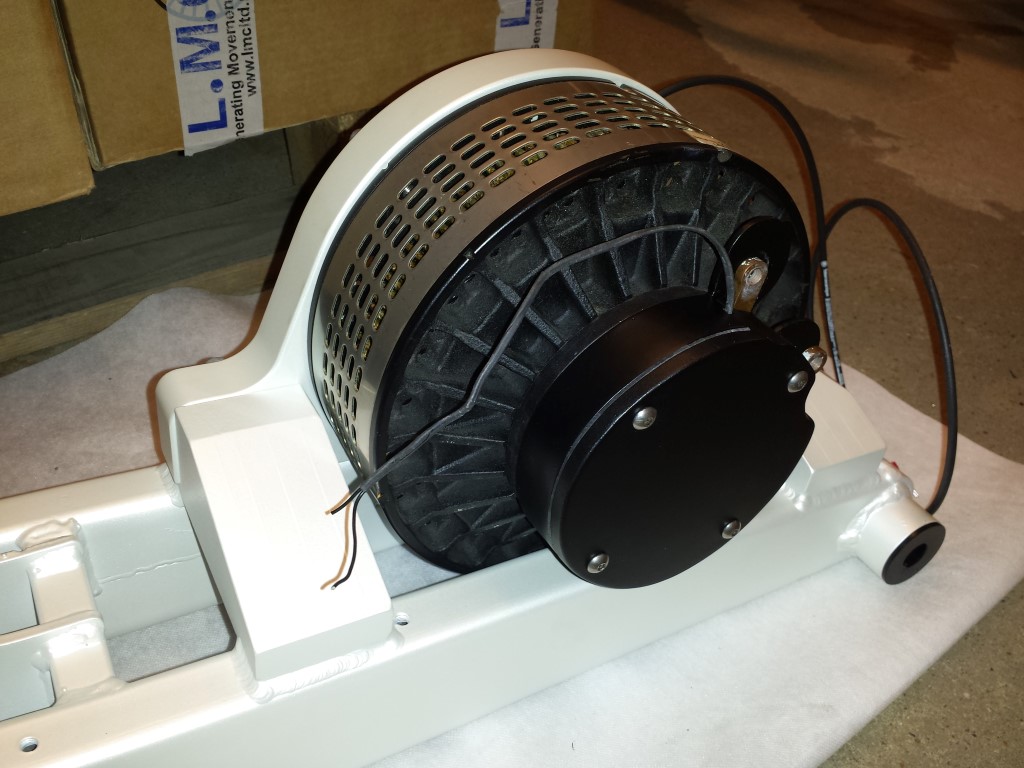

Today was a very productive day. The quad bike is nicely standing on 4 wheels again. This morning I started with attaching the motor to the rear swingarm. I just needed a rubber hammer to get it on there because of the thick layer of paint on the blocks and plate but at least it's firmly on there now.

E-Streetquad Quad bike on 4 wheels again

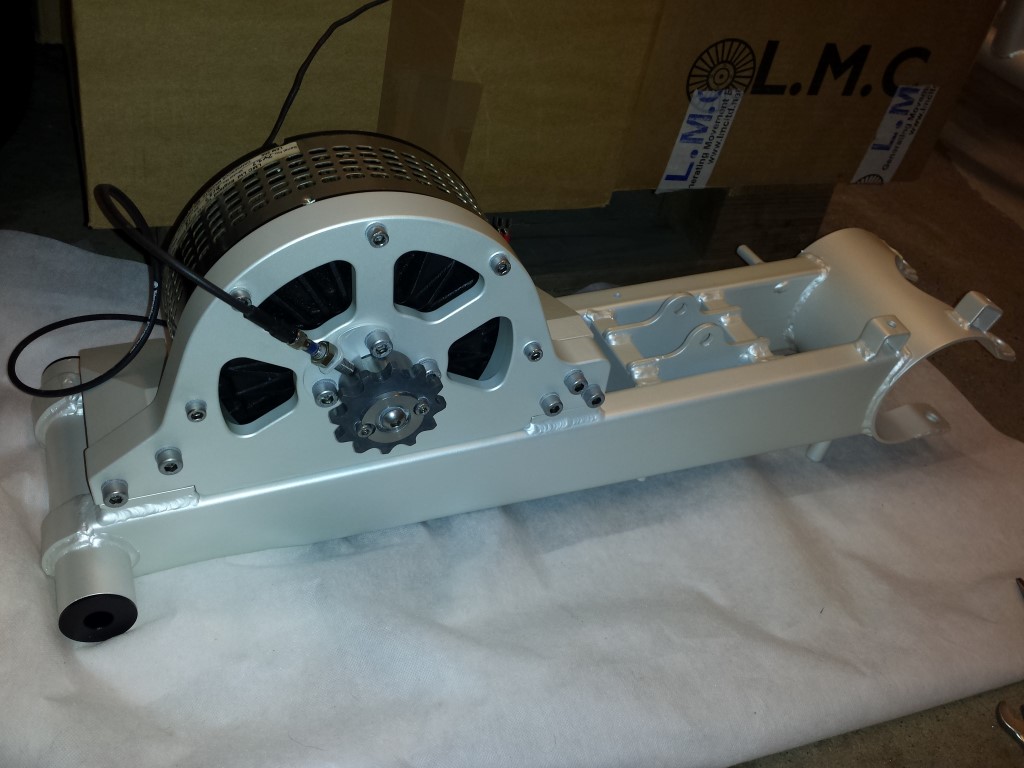

I also placed the new protective cover on it. Definately looks much better than the original.

E-Streetquad Quad bike on 4 wheels again

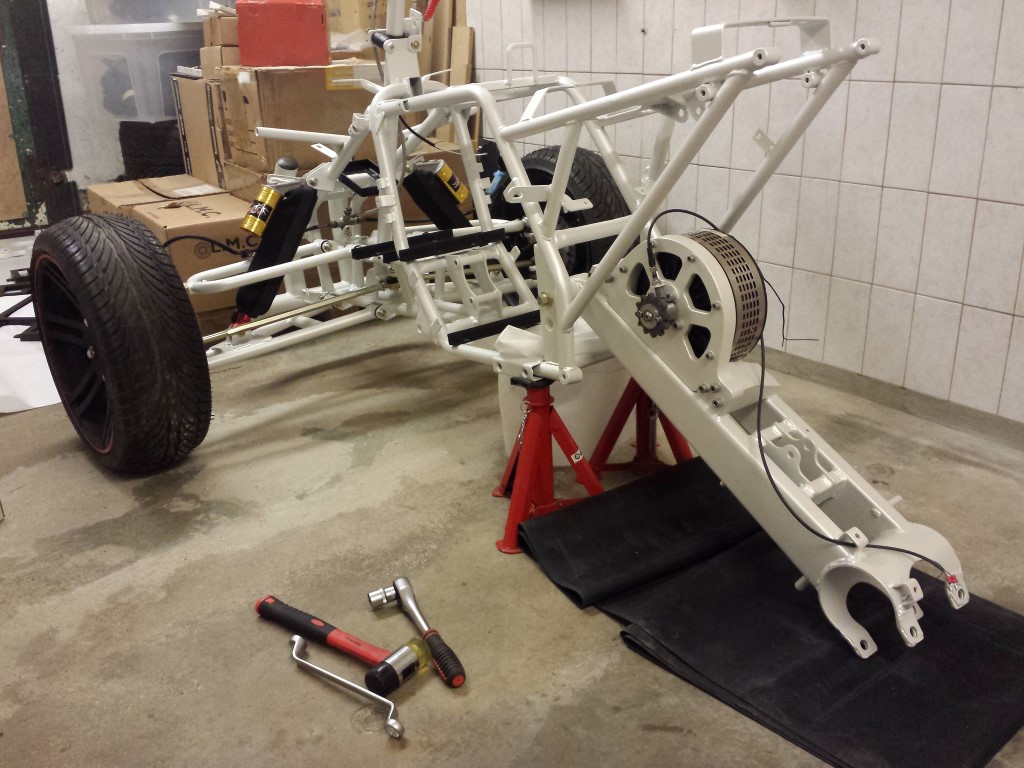

Then I wanted to place the rear swingarm onto the frame. Wasn't really easy since it weighs about 15 kg in total with the motor on it. With the POM bushings in it it's also just a bit wider so I had to push the mounting points on the frame outward a bit. After that I was able to get it in pretty good with some help of the rubber hammer again and a few extra hands.

E-Streetquad Quad bike on 4 wheels again


Shock with shock cover attached and the bearing house in the rear swingarm.

E-Streetquad Quad bike on 4 wheels again

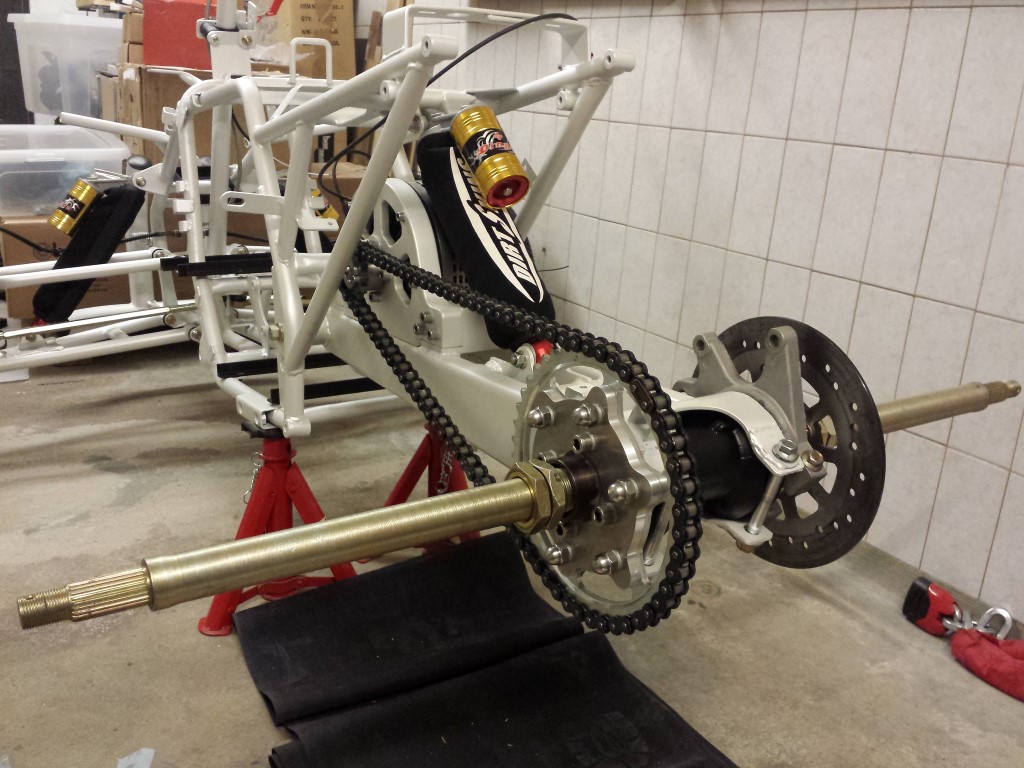

Then I placed the rear axle and added the rear sprocket and brake disc to it. Also placed the chain and tensioned it already.

E-Streetquad Quad bike on 4 wheels again

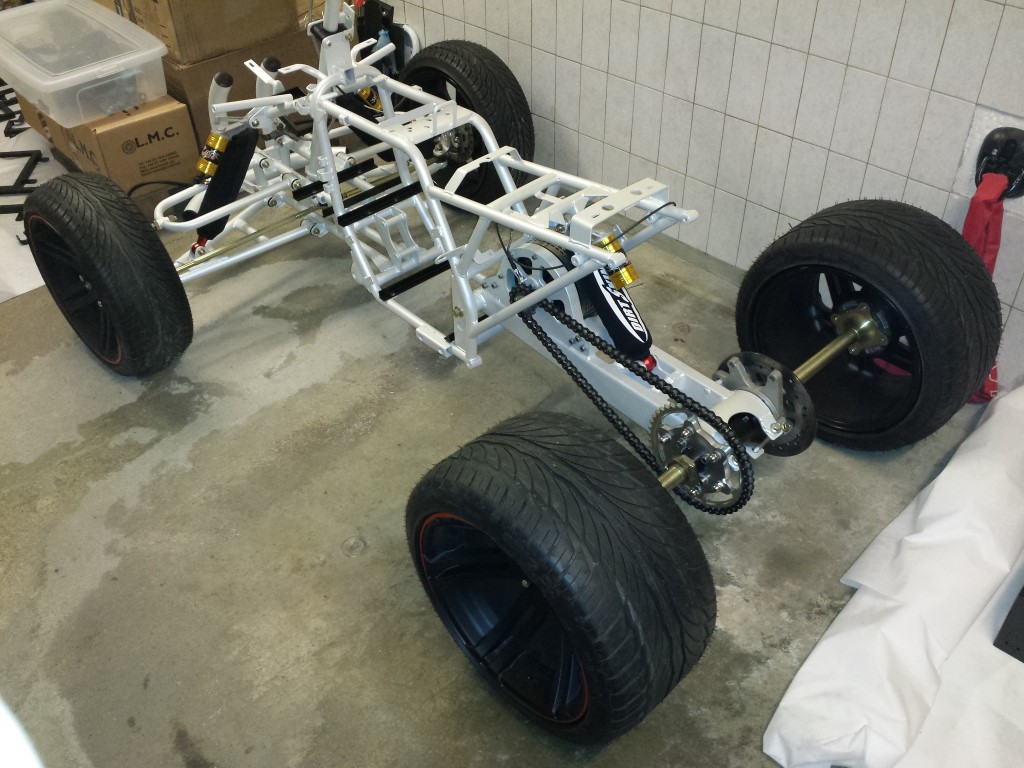

And then I could place the wheel hubs and the wheels themselves. Finally the quad bike is standing on all 4 of its wheels again.

E-Streetquad Quad bike on 4 wheels again

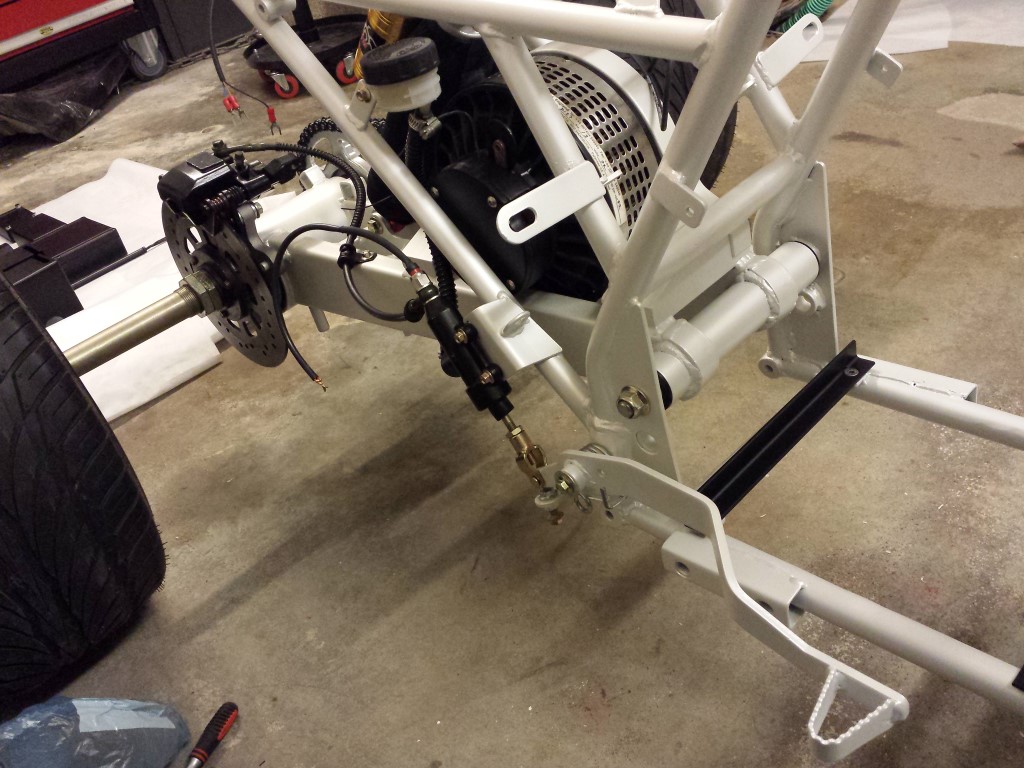

Also still placed the whole rear brake system.

E-Streetquad Quad bike on 4 wheels again


And then I thought it was enough for today. Tomorrow afternoon and evening I'll continue again. What I did already notice is that the quad bike rolls much easier now than before. Think this has something to do with the new bearings. Always had to push it a lot harder when the old bearings were still in it. Or perhaps the brake pedal for the rear just wasn't properly adjusted, this is also quite better now I think.

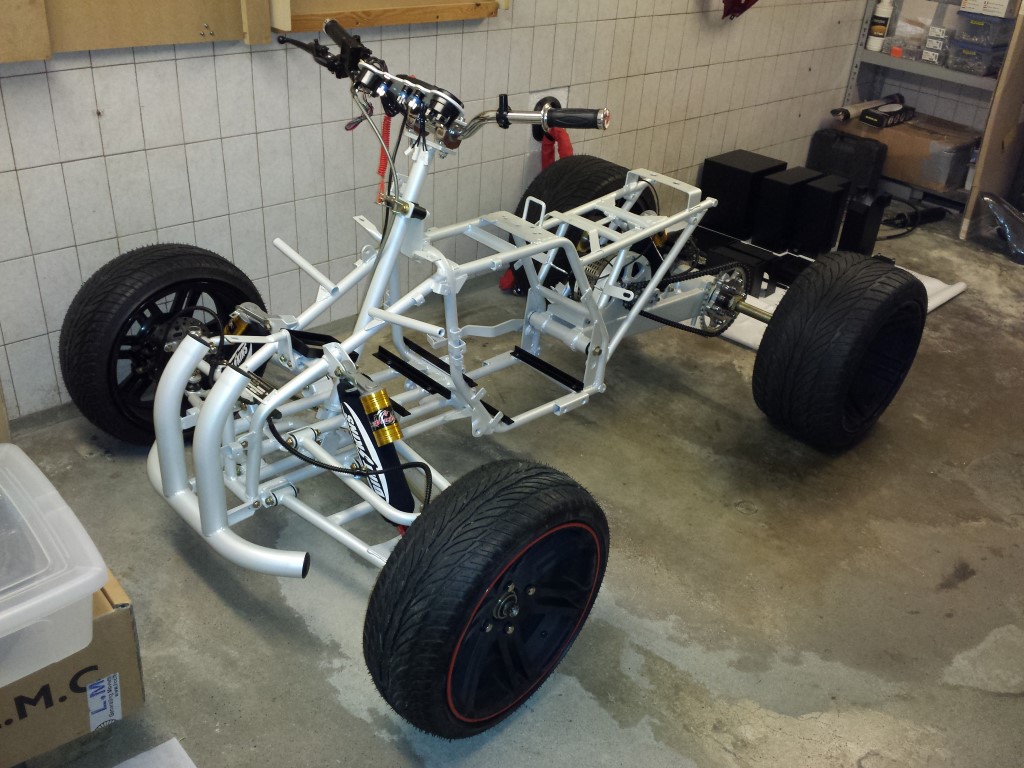

Just another picture of how the quad bike looks like right now. Really starting to look like something again.

E-Streetquad Quad bike on 4 wheels again

Posted on 28 September 2014 at 12:22 am (CET)
Category: General
Posted on 28 September 2014 at 12:22 am (CET)
Category: General

As promised, another (late) update today. The aluminium parts were sprayed today and are back home. I really have everything here at home now so it only depends on me now how fast the quad bike will be finished. Here are some pictures from after the spraying. My sister has really done a good job again, it all looks very nice again.

E-Streetquad Aluminium parts sprayed and back home


E-Streetquad Aluminium parts sprayed and back home


E-Streetquad Aluminium parts sprayed and back home


E-Streetquad Aluminium parts sprayed and back home


And here they are back home all nicely put together. I'm happy that I won't have to get back any more parts because it's really full here now.

E-Streetquad Aluminium parts sprayed and back home


Ofcourse I immediately continued building it up again. First I placed the complete front brake system. Just like it came out without having to remove even one brake line it went back in again.

E-Streetquad Aluminium parts sprayed and back home


E-Streetquad Aluminium parts sprayed and back home


Then I greased and placed the steering shaft and track rods. Also attached the handlebar with the gauge plate on it since I won't be placing the fenders yet for the test ride soon (front fender can only be placed when the handlebar is off).

E-Streetquad Aluminium parts sprayed and back home


E-Streetquad Aluminium parts sprayed and back home


And I placed all of the gauges and switches on it, looks very nice again.

E-Streetquad Aluminium parts sprayed and back home


Tomorrow I'll continue again, I think the rear swingarm might be going in.

Posted on 27 September 2014 at 12:04 pm (CET)
Category: Wiring (12V)
Posted on 27 September 2014 at 12:04 pm (CET)
Category: Wiring (12V)

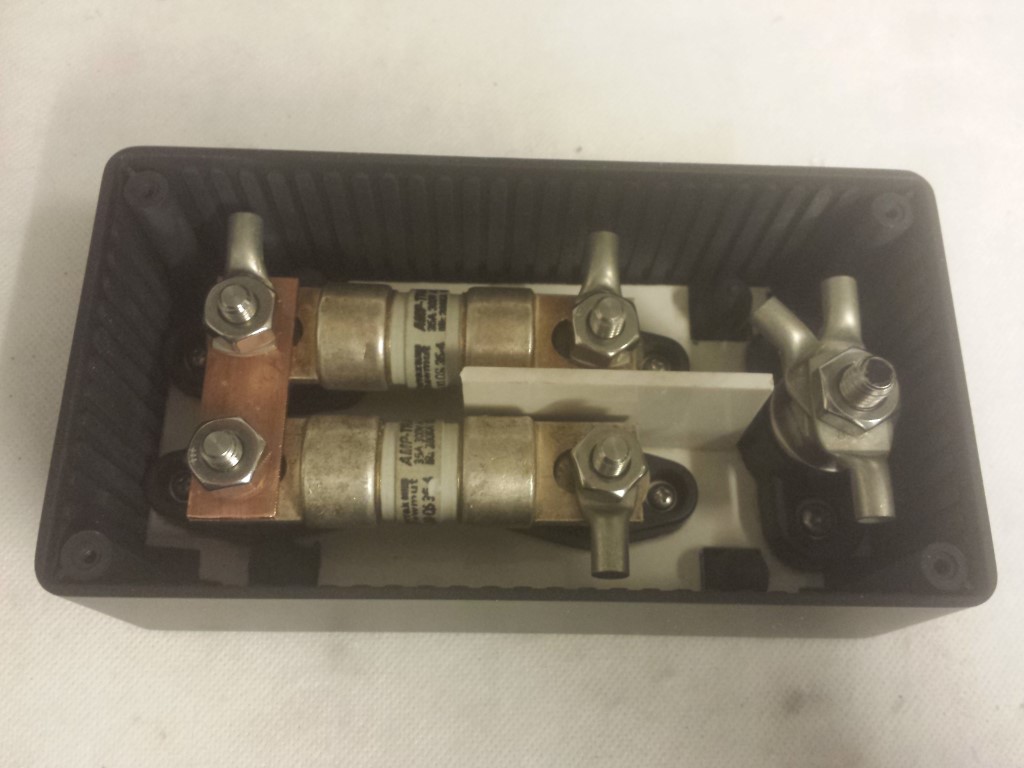

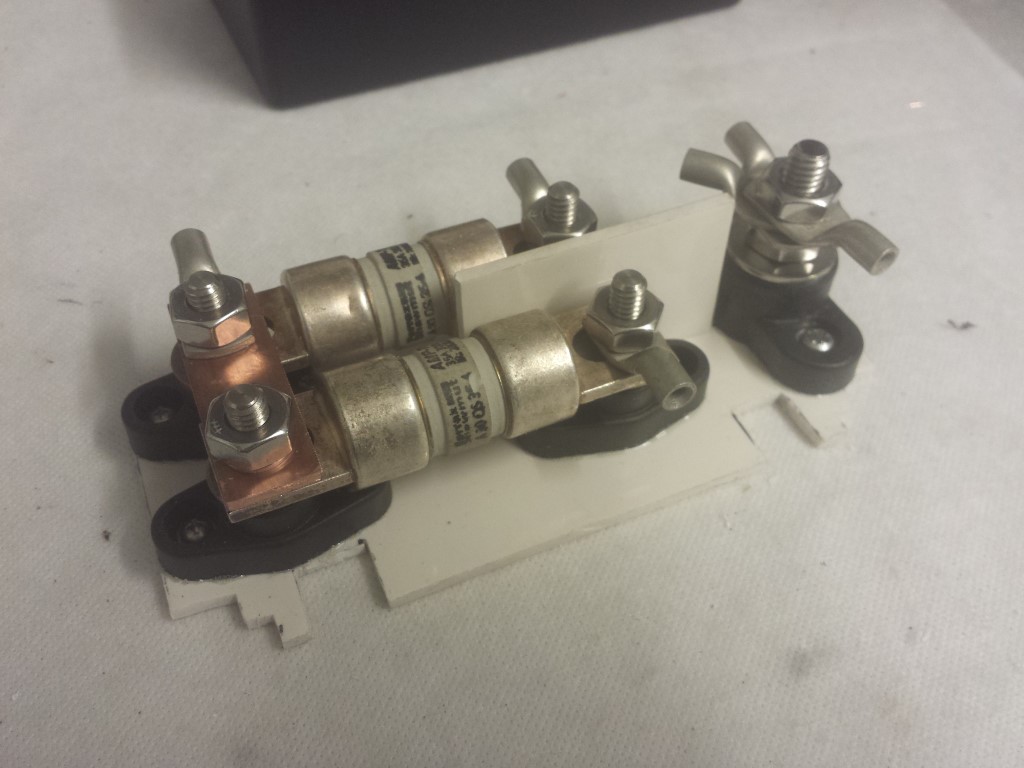

The last few days I've been been busy filling up one of the boxes with components and wiring them all up. Quite a challenge to stuff as much as possible into it. The plan was to get all this in.

E-Streetquad First box filled with components and wired up


I just started wiring up the 2 bigger relays, these are for the 3 drive modes (low power, high power, reverse). All wires are soldered directly onto the contacts. The mounts for these kind of relays take up too much space.

E-Streetquad First box filled with components and wired up


I wanted to do the same with the small relays but this wasn't such a good idea. They still took up too much space to be able to place them in the same box. The contacts also kept breaking when I was moving the wires a bit.

E-Streetquad First box filled with components and wired up


So for these I still bought some circuit boards and they will come in a seperate box. Should still have some space for that on the quad bike.

E-Streetquad First box filled with components and wired up


Already soldered the relays onto them. With some spacers inbetween the circuit boards I can stack 3 of them.

E-Streetquad First box filled with components and wired up


But that box will come later, still have to start on it. For the other box I was working on I made a plate that fits right in. I can screw all of the components onto that. Also wired these all up already. The bigger one is the main board for the BMS (Battery Management System) and the smaller one is to convert a pulse signal from a switch to on/off.

E-Streetquad First box filled with components and wired up


And here's everything in the box, it all barely fits. There are quite a lot of wires that have to go outside of the box. Still have to get some cable glands that I can place in the box but I'll wait with that untill I have the other boxes done as well.

E-Streetquad First box filled with components and wired up


Later on I'll have some more news if all goes well, in any case I'll have enough to do again this weekend.

Posted on 23 September 2014 at 11:12 pm (CET)
Category: General
Posted on 23 September 2014 at 11:12 pm (CET)
Category: General

My sister had a little surprise for me today. While I was busy making some space so I could turn the quad bike around she was already spraying a layer of epoxy on all of the aluminium parts. This was actually going to be done next week so that was definately nice to hear. She also sent a few pictures again.

Here before spraying. All parts were also sanded a bit.

E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


And after spraying.

E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


E-Streetquad Epoxy on all of the aluminium parts


This Saturday they will all be sprayed in the same color as the frame and I can take them home again. I'm really curious how these parts will look like in that nice color.

Tonight I only made some space and turned the quad bike around so it's easier for me to work on. A few of the black parts are also attached now. Looks very nice in combination with the white, just can't really see it well yet in the picture.

E-Streetquad Epoxy on all of the aluminium parts


The coming days I'll probably be busy with some of the smaller boxes already placing some electric components in them.

Posted on 22 September 2014 at 11:24 pm (CET)
Category: General
Posted on 22 September 2014 at 11:24 pm (CET)
Category: General

Tonight I continued again. The wheel hubs with brake discs and the bumper are now attached. And the quad bike can stand on the ground again at the front since the wheels are also on it already.

E-Streetquad Wheel hubs, bumper and wheels attached


E-Streetquad Wheel hubs, bumper and wheels attached


E-Streetquad Wheel hubs, bumper and wheels attached


E-Streetquad Wheel hubs, bumper and wheels attached


Also placed the POM bushings in the rear swingarm already so it's ready to get attached as soon as the motor is on there. But untill then the quad bike still has to stay off the ground at the rear.

E-Streetquad Wheel hubs, bumper and wheels attached


The front brake system and the track rods I also can't attach for now. The steering shaft and handle bar has to be attached for this first. But the part the keeps the steering shaft in place will be sprayed together with the aluminium parts. This part also got back from the sandblaster very late, that's why it hasn't been sprayed yet. Think I can only continue with a few of the black parts now. Meanwhile I'm running out of space here, the quad bike keeps getting bigger but there are still many parts on the floor. So I'll first have to see how I can deal with that.
