Finally an update again. These past 2 weeks I've definately not just been sitting on my hands. Lets start with the small things.

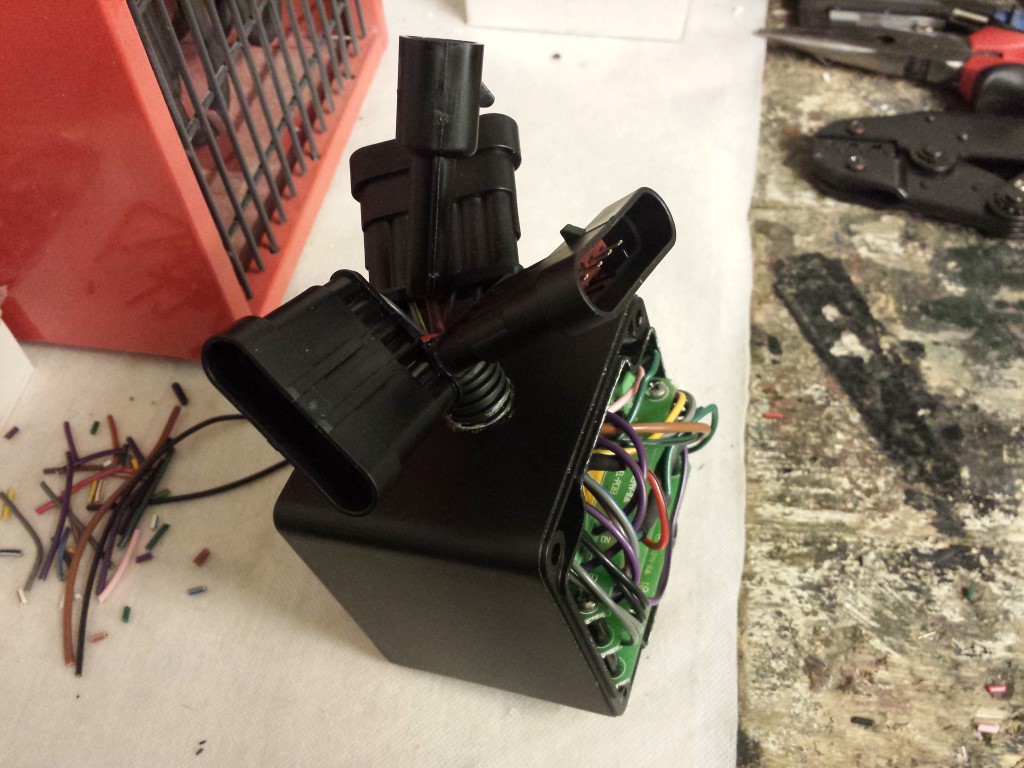

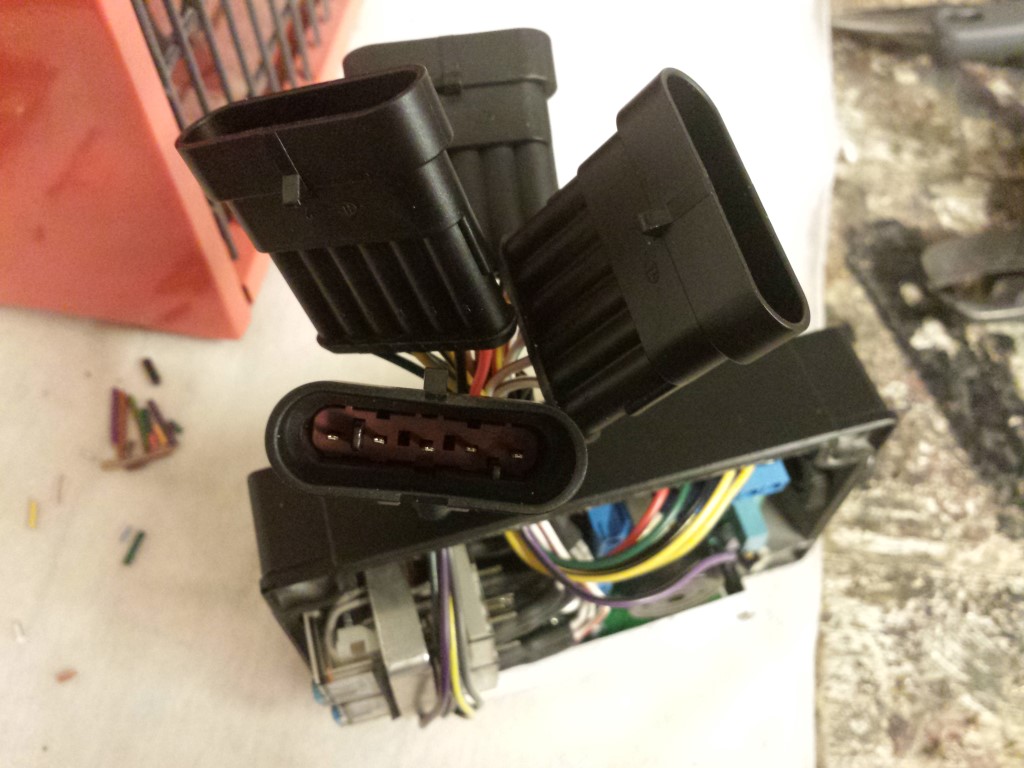

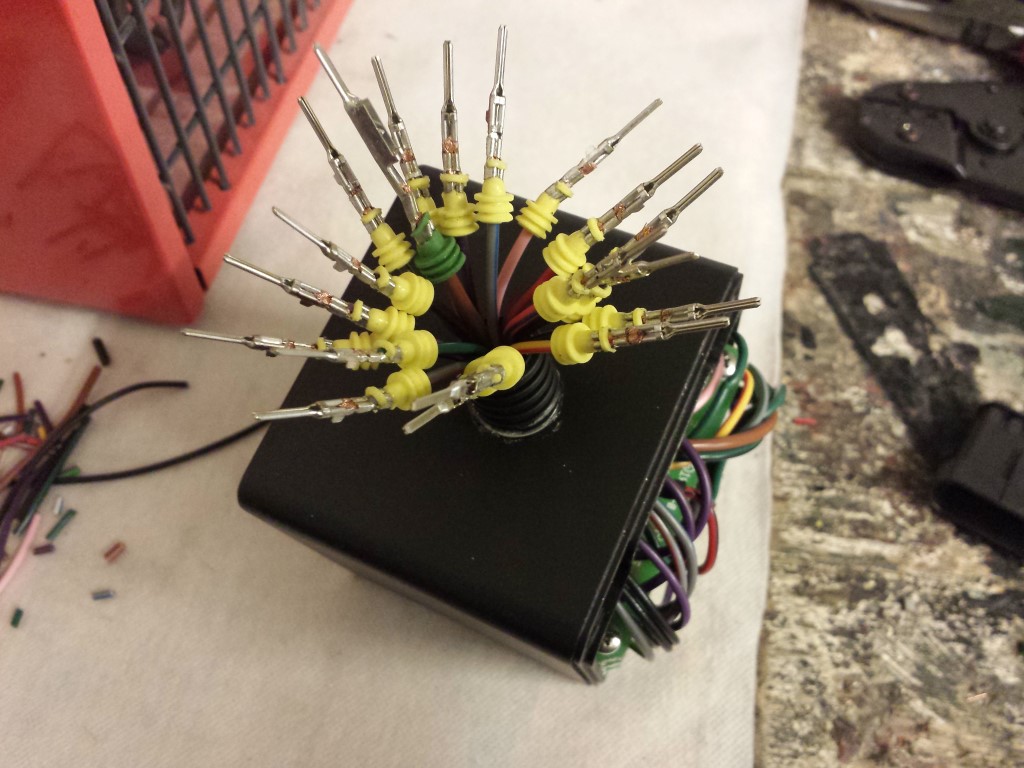

I've placed the wires for the sensor to the batteries. These are very important wires, because of them I can always see the voltage of the whole battery pack and the capacity is also calculated like this. So that's definately nice to know while driving.

E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


For the looks I bought some new mirrors, these match very well with the carbon mudguards. Looks much better than the standard chrome mirrors. Just have to wait and see how the view is. The only problem is that these don't have an E-marking, so I'll still have to use the chrome mirrors for the road approval test at the RDW.

E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


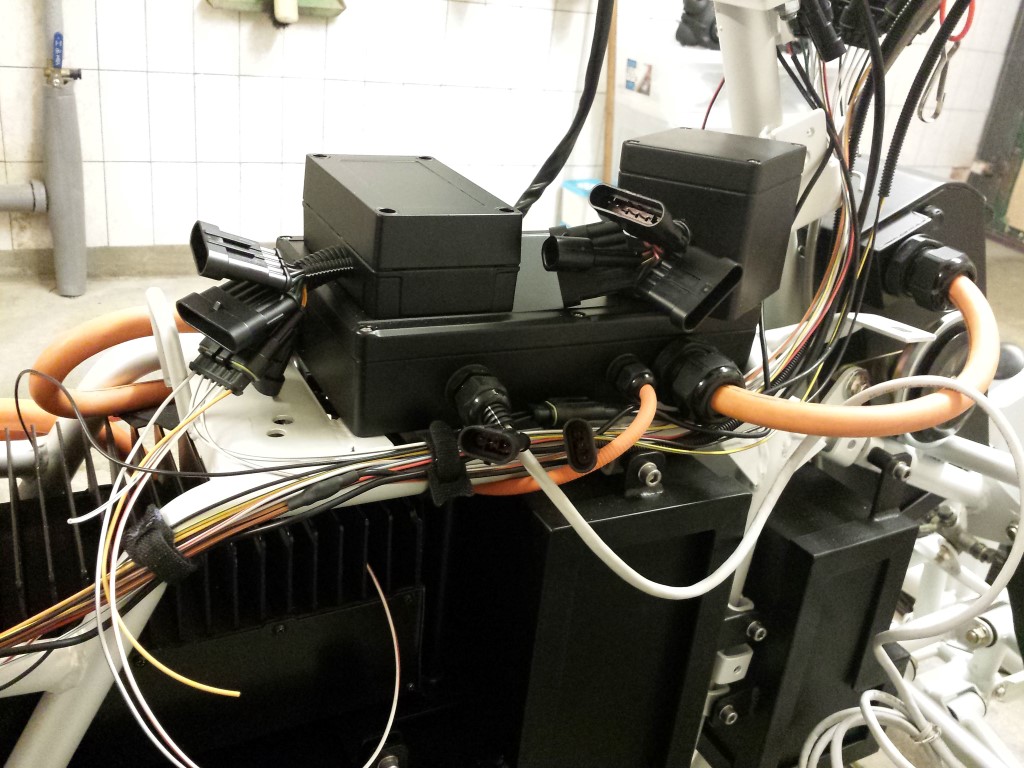

But the most important is that the top case is pretty much done now. I've made a protective cover out of plastic that fits over the contactors and is closed off all around it. This way it's impossible to still touch anything with live voltage. Mounting points for this are glued in again. The DC-DC converter to convert 72V to 12V still fits very nicely on top of this as well.

E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


But since this is open on the top and has live voltage on certain parts I also had to make a seperate protective cover for this. On the rear I drilled quite some holes so the heat can go out.

E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


Then I was still left with the 12V battery. The plan was to place this as a square block as far as possible to the right but because of all the round shapes in the top case this was just too difficult. So I ended up placing it as an oblong shape in the middle. The sides are covered up again. I left the rest open, I think it looks pretty nice.

E-Streetquad Protective covers for contactors, DC-DC converter and 12V battery


This will all still be sprayed black and then I can continue with the wiring again.

Posted on 2 November 2014 at 01:00 am (CET)

The past week I've done a lot of work again. First thing I wanted attached in the top case are the contactors for being able to drive in reverse. This all went well, I just hope that it's strong enough.

I made a whole construction out of plastic where the contactors fit in nicely.

E-Streetquad Contactors for reverse attached in top case and connected


Also made mounting points that I glued into the top case with special glue. With this I have to wait and see if it's strong enough.

E-Streetquad Contactors for reverse attached in top case and connected


The contactors I can easily attach or remove this way. Meanwhile I've also connected the last few wires for the propulsion. The smaller black wires are just for earthing of the shielding in the orange wires, just still have to isolate these so they can't come in touch with the contactors.

E-Streetquad Contactors for reverse attached in top case and connected


I was worried that it wouldn't look so good on the outside of the top case but it doesn't look too bad. As you can see I ended up using cable glands again instead of those rubbers. The wires stay in place much better like this and the top case is still waterproof.

E-Streetquad Contactors for reverse attached in top case and connected


E-Streetquad Contactors for reverse attached in top case and connected


E-Streetquad Contactors for reverse attached in top case and connected


I've also tried with the rear fender on it already and you don't notice the wires as much then. I just forgot to take a picture of this and the fender is also off again. So I'll show that later.

The plan now is to make some shielding in the top case so the contactors won't be visible anymore and untouchable. But that will take a while again to finish.

Posted on 24 October 2014 at 11:59 pm (CET)
Posted on 24 October 2014 at 11:59 pm (CET)

These past few days I've been busy again. Got a reply from the RDW saying it's no problem that a few components will be placed in the top case and that there will be high voltage wires coming out of it and sticking out a bit. So this is all allowed, just has to be done in a safe way of course.

First I started making some pass through holes for the wires in the top case. I just don't know whether I'll keep using these rubbers or use cable glands again. With the rubbers the wires won't stick out as much.

E-Streetquad Holes in top case and charger connected


Also bought some new heatshrink so I could continue again making the wires for the charger. There are also connectors inbetween so I can disconnect the charger from the batteries just in case it's ever needed.

E-Streetquad Holes in top case and charger connected


Here with the connectors connected. Because of the rubbers that are all around it stays completely waterproof.

E-Streetquad Holes in top case and charger connected

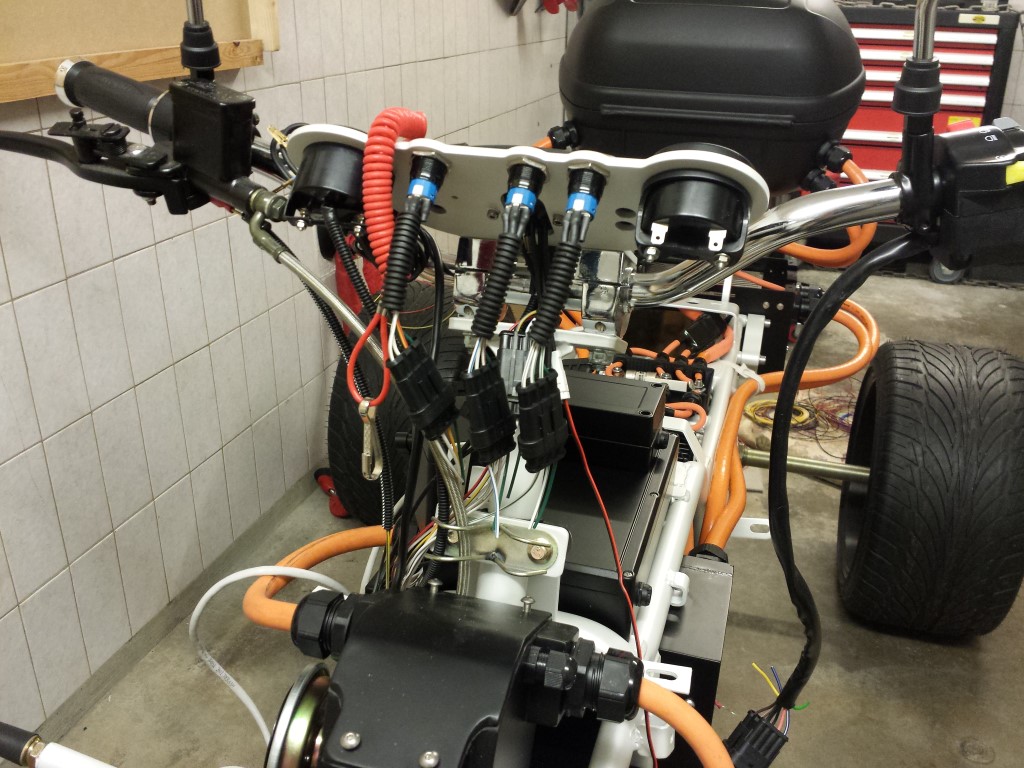

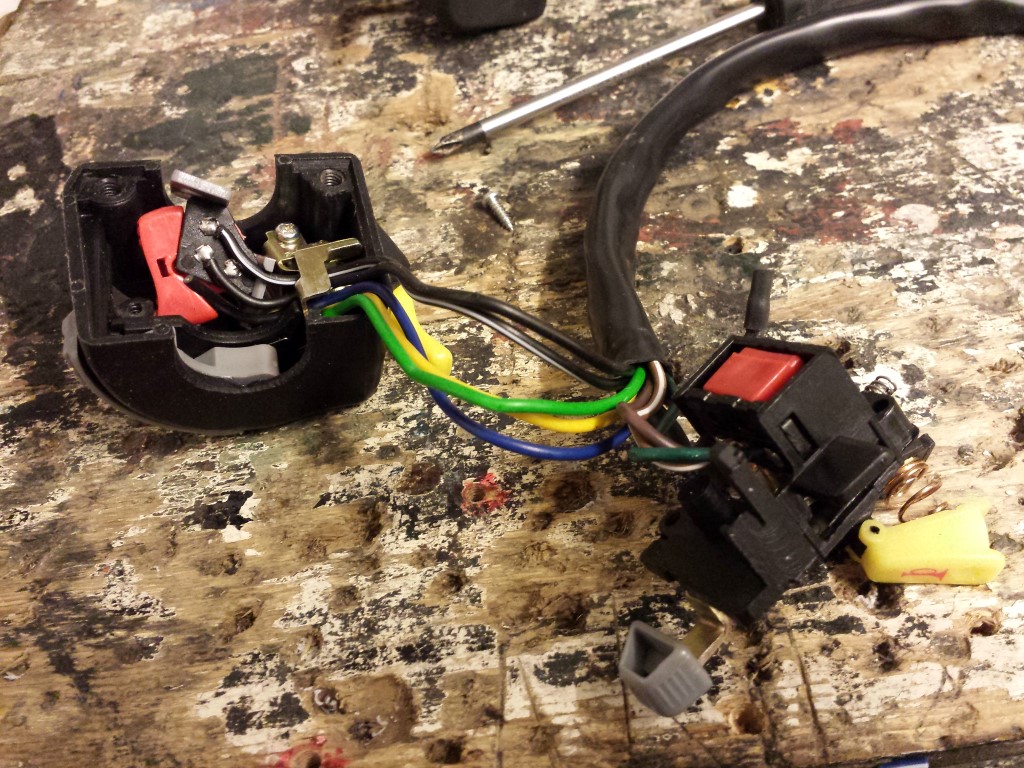

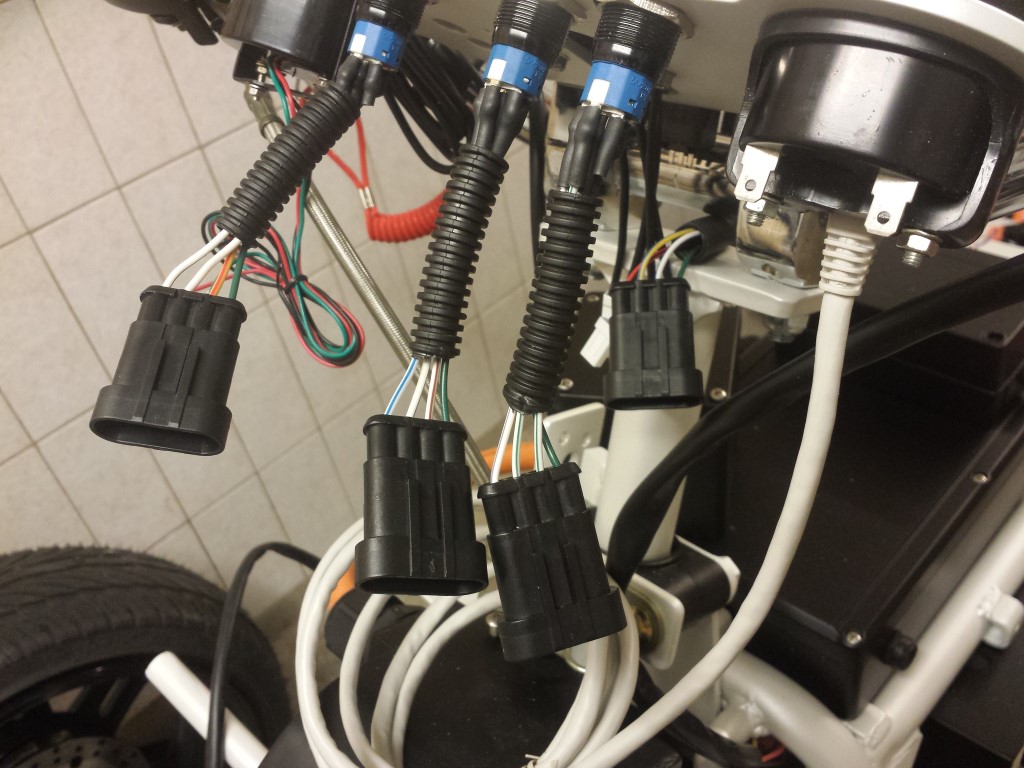

Meanwhile I have also done some smaller things. The new handle switch is attached and soldered all of the wires for the led buttons.

E-Streetquad Holes in top case and charger connected


E-Streetquad Holes in top case and charger connected


This weekend I'll start attaching all of the components in the top case.

Posted on 19 October 2014 at 12:26 am (CET)
Category: Controller, Wiring (HV)
Posted on 19 October 2014 at 12:26 am (CET)
Category: Controller, Wiring (HV)

The wires between the whole battery pack and the controller are also done now. These were a bit harder to make because of the extra shielding in these wires.

First I did the same as with the other wires, stripped and crimped a cable lug onto it.

E-Streetquad Wires to controller and top case attached


After that I stripped it to the shielding and soldered a small wire onto it. This has to be earthed to the controller's enclosure. The shielding should ofcourse not touch the cable lug so to be sure I used some extra heat shrink.

E-Streetquad Wires to controller and top case attached


Some more heat shrink on it to seal it good again.

E-Streetquad Wires to controller and top case attached


For the controller's enclosure I already made the wires for earthing quite a while ago. So now I could just connect the shielding of the wire to it. It's a lot of work but it's the only way to get it approved at the RDW (safety inspection).

E-Streetquad Wires to controller and top case attached


Did this all with the other wire as well. And after that I also attached the top case again.

E-Streetquad Wires to controller and top case attached


These 3 things I'll have to attach somewhere in the top case. These are the 2 contactors for being able to drive forward and reverse, the 12V battery and the DC-DC converter. Think I'll have to glue in some plastic mounting points. And I also have to make some holes in it for cable pass through.

E-Streetquad Wires to controller and top case attached


Also made some wires already that go to the 2 fuses for the charger and DC-DC converter. I'm just short on orange heat shrink, can't really continue with this untill I have some more.

E-Streetquad Wires to controller and top case attached


Tomorrow I'll continue again, it gets more fun every time now.

Posted on 16 October 2014 at 11:59 pm (CET)
Category: Wiring (HV)
Posted on 16 October 2014 at 11:59 pm (CET)
Category: Wiring (HV)

Yesterday and today I've been busy making the wires between the 4 battery packs. First I checked which size I needed to crimp the cable lugs. I just used a small piece of wire for testing. I also have 2 different kinds of cable lugs, one thicker than the other. I can't use the same size for both of them. You can see this here with the wire on the right, this is a thicker cable lug and crimped it with the same size as the thinner cable lug. Because of this you get some extensions on the sides. If a wire like this gets used it can melt or even cause a fire because of the heat build up. The left and middle one are crimped with 2 different sizes and are perfect. So that is how they all should be.

E-Streetquad Wires between battery packs


Now I could start with the real wires. First I stripped the wires and crimped the cable lug onto it.

E-Streetquad Wires between battery packs


Then I made the wire to size and did the same on the other side. I just placed the cable glands on it first because they don't fit over the cable lugs.

E-Streetquad Wires between battery packs


That's how I did all of the wires for the battery packs and they're all done now.

E-Streetquad Wires between battery packs


E-Streetquad Wires between battery packs


Tomorrow I'll continue with the wires between the whole battery pack and the controller. These are a bit more difficult since there's also a seperate shielding in these wires making them more stiff. Also have to do some other things with these but I'll probably show this tomorrow.
